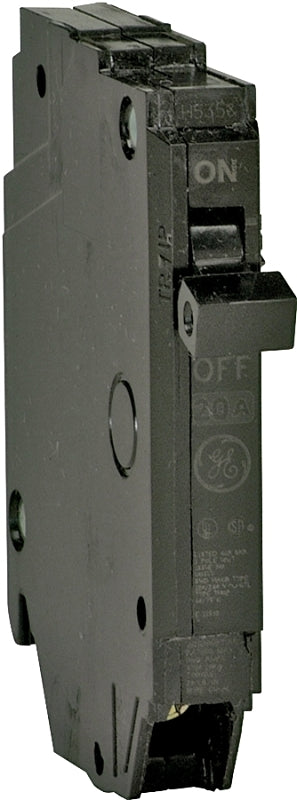

GE THQP140 Feeder Circuit Breaker, Type THQP, 40 A, 1-Pole, 120/240 V, Non-Interchangeable Trip, Plug

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space, 1/2 in per pole. UL listed, HACR rated. 15 and 20 A SWD, switching duty rated, suitable for 120 V fluorescent lighting loads. 15 to 25 A #14 to 8 cu or #12 to 8 al AWG wire, 30 to 50 A #8 to 4 cu or #8 to 2 al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.

Key Details

• Type THQP
• 40 A
• 1-Pole
• 120/240 V
• Non-Interchangeable Trip
• Plug

Brand: GE

Shipping: Usually ships in 3-8 business days.
