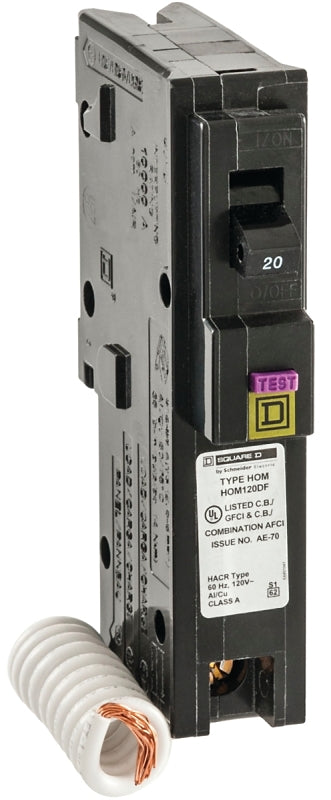

Square D Homeline HOM120DFC Miniature Circuit Breaker, Dual-Function, 20 A, 1-Pole, 120 V, Plug Mounting

Homeline miniature circuit breakers are engineered and designed for fast installation and great circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This single pole circuit breaker with plug-in mounting is rated 20 A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This dual function Homeline circuit breaker combines arc fault and ground fault circuit interrupters. This circuit breaker provides overload and short-circuit protection, plus arc fault and ground fault protection in a single device in accordance with the NEC, UL1699 and UL943. The electrical connection is a clamp terminal that will accept two wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. Circuit breaker is consumer packaged.

Key Details

• Dual-Function
• 20 A
• 1-Pole
• 120 V
• Plug Mounting

Brand: Square D

Shipping: Usually ships in 3-8 business days.
