Johnson Hardware 1500 Series Commercial Grade Pocket Door Hardware For 2x4 Stud Wall (36 Inch x 96 Inch)


Price:
Sale price$124.99

Description

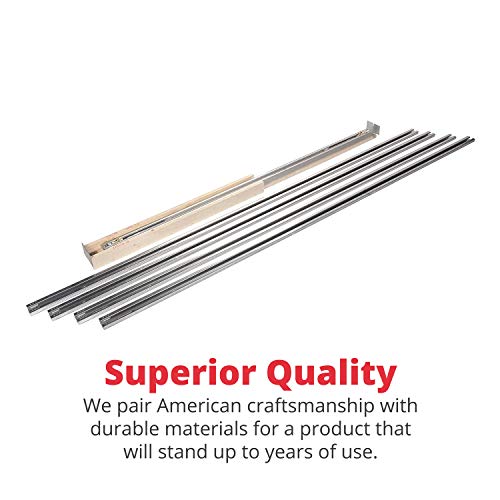

The 1500 Series Pocket Door Frame is designed to carry heavy solid core doors (up to 200lbs each) in standard 2 x 4 timber framed stud walls. The 1500 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1500 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

Technical Ratings:
Grade: Commercial Grade ANSI Certified
Application: Interior Commercial / Residential
Max Door Thickness: 1-3/4" [44mm]
Max Door Width: 60" [1524mm]
Max Door Height: 108" [2743mm]
Min. Wall Structure Thickness: 3-1/2" [90mm]

Manufacturing Specifications:
Frame Header: Spruce, Pine, or Fir (#3 or better)
Split Studs: Spruce, Pine, or Fir (#3 or better), galvanized steel wrapped
Track: Aluminum extrusion, mill grade finish
Steel Components: 12-14 gauge, zinc trivalent plated
Wheels: Nylon encapsulated sealed ball bearing
Packaging: Rigid cardboard box, reinforced ends
Country of Origin: USA

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls NOT included). All frames CAN be cut down to fit any smaller size door

How to order the 1500 Series Pocket Door frame:
For Single Pocket Doors:
1. Determine your door size (door width, door height and door thickness)
2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

For Converging Pocket Doors:
1. Determine your door sizes (door width, door height and door thickness)
2. Select a frame part number that accommodates your door size. Don't see your exact door size? R

  • COMMERCIAL GRADE - The 1500 Series Pocket Door Frame is an easily assembled, premium quality commercial/residential kit for installing a pocket door into a 2x4 stud wall. Pocket doors do not need "swing" room, saving valuable floor space while still assuring the full privacy of a standard door. The 1500 Series Pocket Door Frame is perfect for the builder or Do-It-Yourselfer.
  • UPGRADE TO STEEL - We are proud to slowly phase out the steel wrapped wood studs to new all-steel studs for this heavy duty pocket door frame. The new all-steel studs are more stiff and allow for 1-¾” thick doors; they also require no adaptor kit. Comes with self-tapping drywall screws and self-tapping trims screws. This transition will be complete by January 2020.
  • SMOOTH OPERATION - Self-adjusting floor anchors allow for settling of floor without disturbing horizontal alignment of header and track. Balanced three wheel tricycle hangers ensure that all wheels carry weight evenly for a lifetime of smooth operation. Convex rails on box track ensure free rolling.
  • EASY TO INSTALL - Comes with all necessary hardware, no drilling required. In addition to the frame, track and hangers, kit also includes door guide, adjustment wrench and door bumper. Frames can be cut down to fit any smaller door size.
  • MADE IN USA - Built in the United States. Johnson hardware offers a true lifetime warranty and will replace any item found defective in material or workmanship regardless of its date of purchase.
